Application Architecture

Here's the high level structure of the code that you'll want to start tinkering with.

  • SDKs sdk/

    • Firstload

    • Client

    • highlight-node / other SDKs

  • Public Graph backend/public-graph/graph/schema.resolvers.go SDK data ingest GraphQL endpoint, hosted locally at http://localhost:8082/public

  • Workers backend/worker.go

    • Public graph worker processPublicWorkerMessage

    • Async worker Start

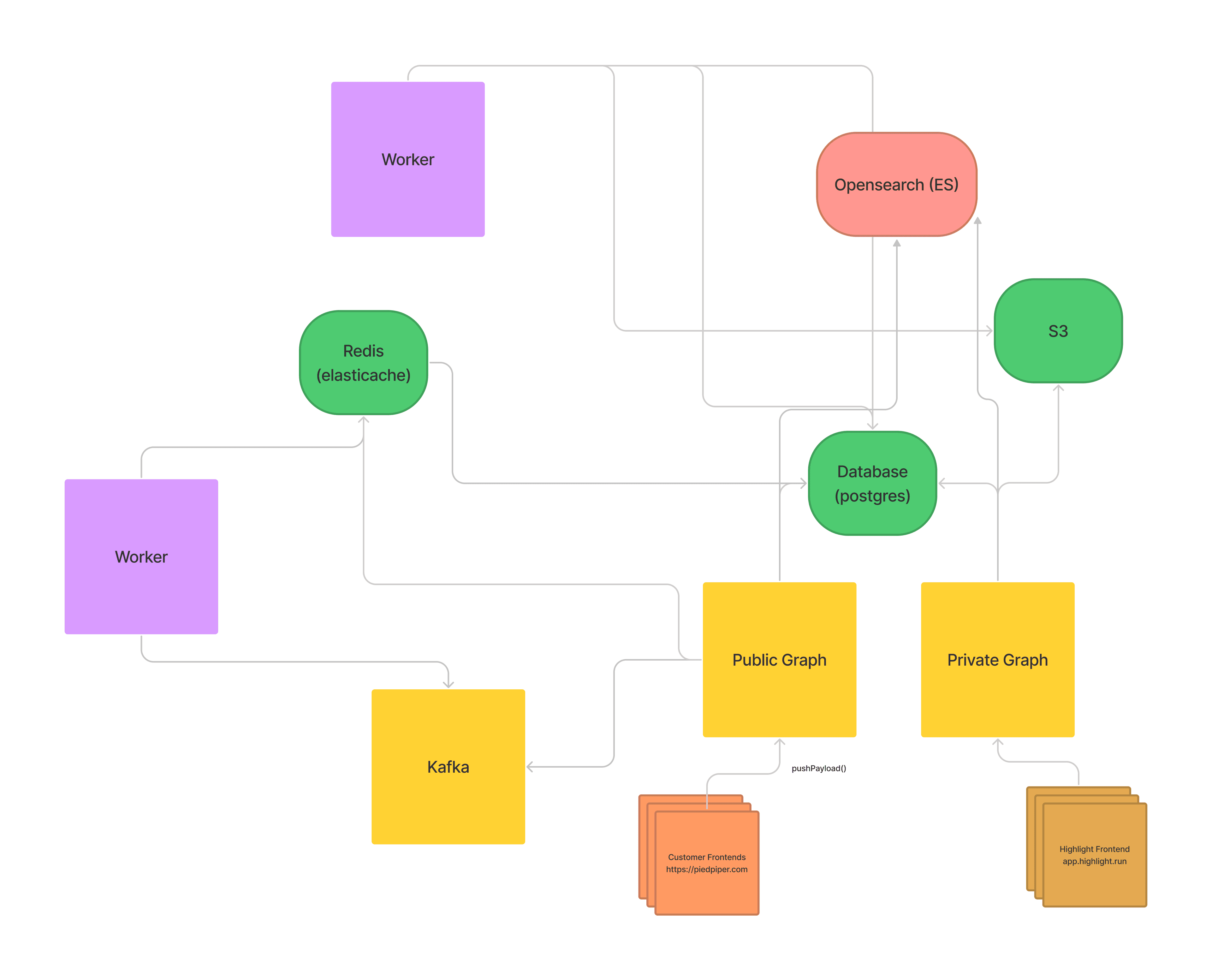

General Architecture Diagram

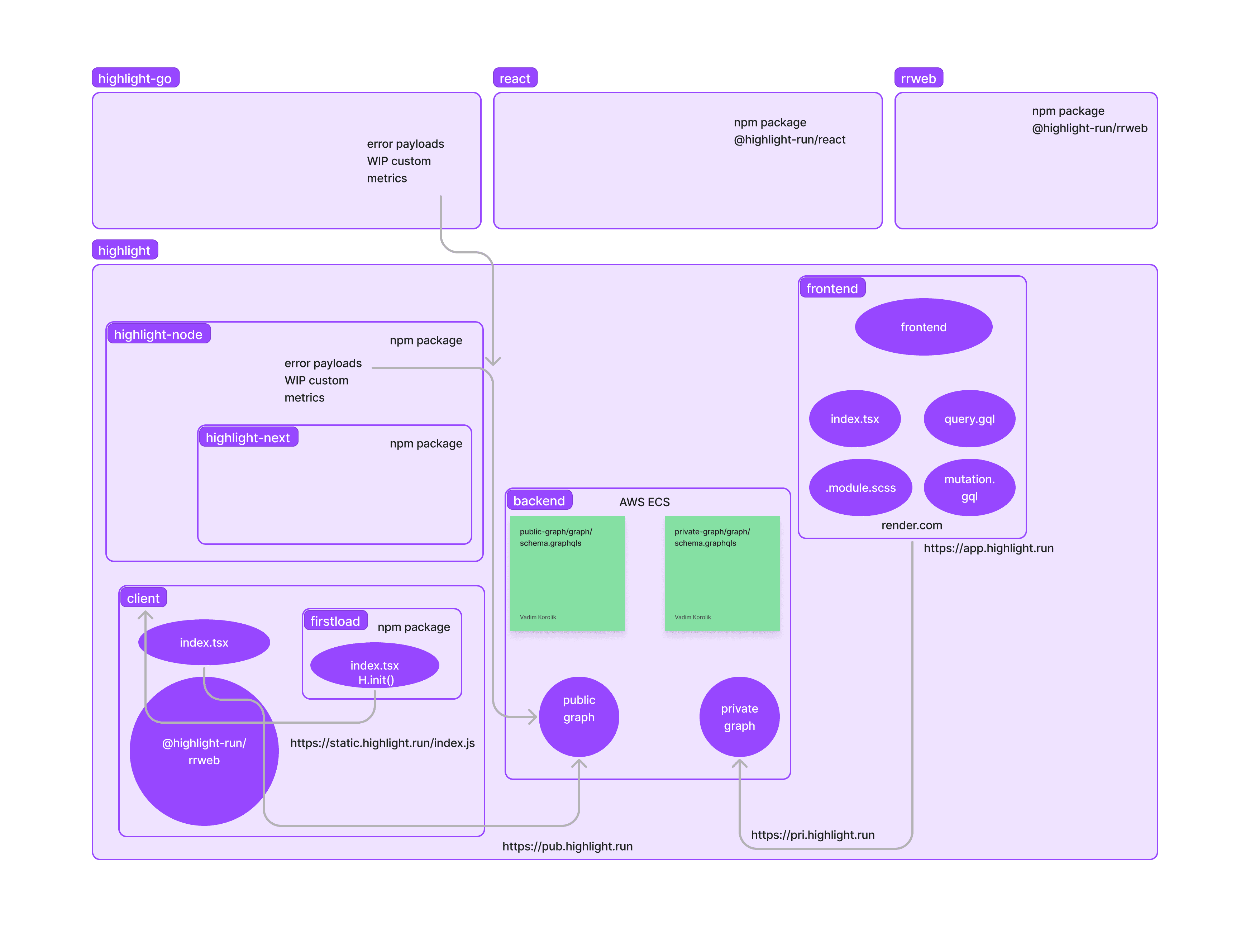

Code Structure Diagram

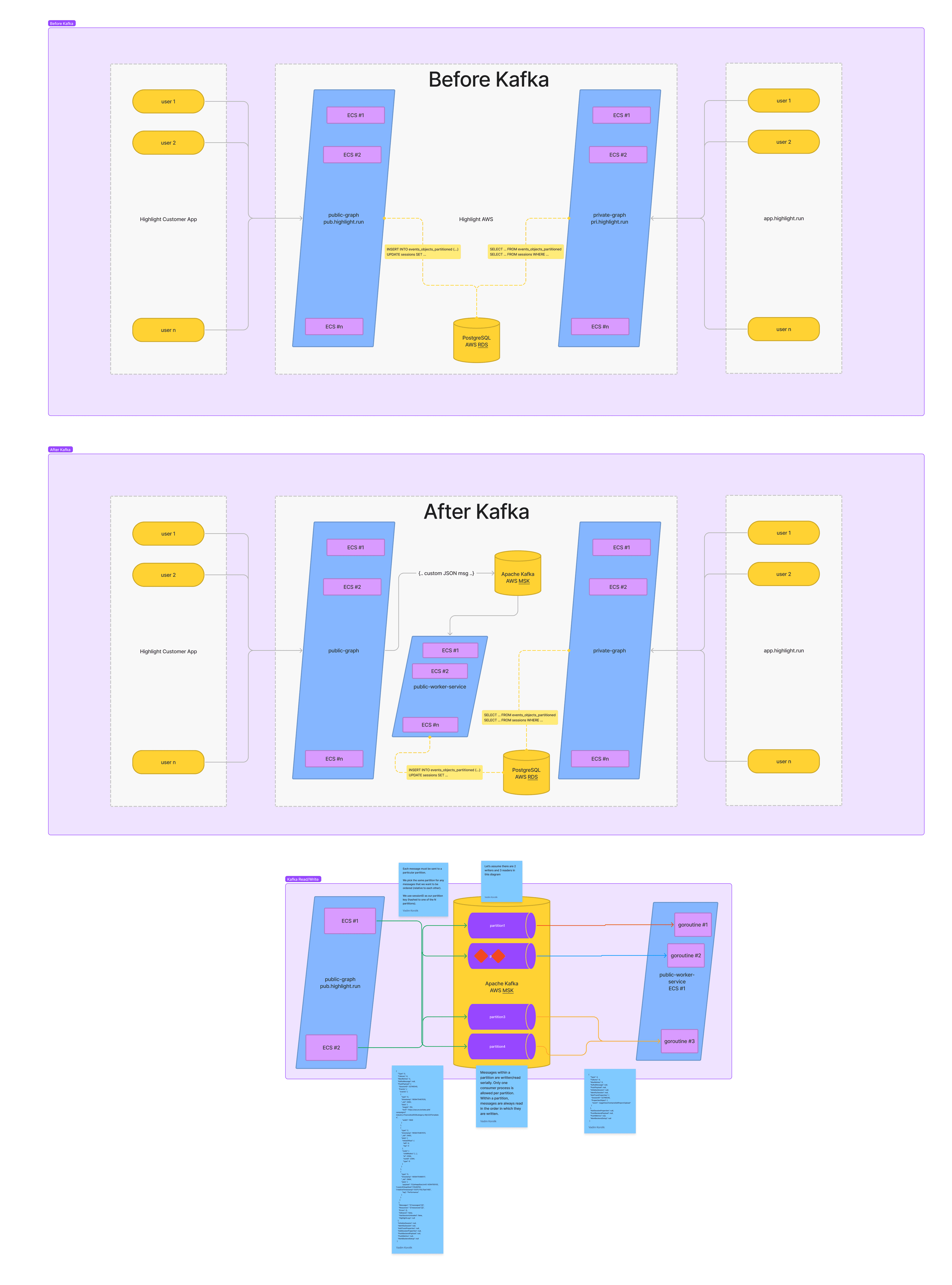

Kafka Diagram

InfluxDB Diagram

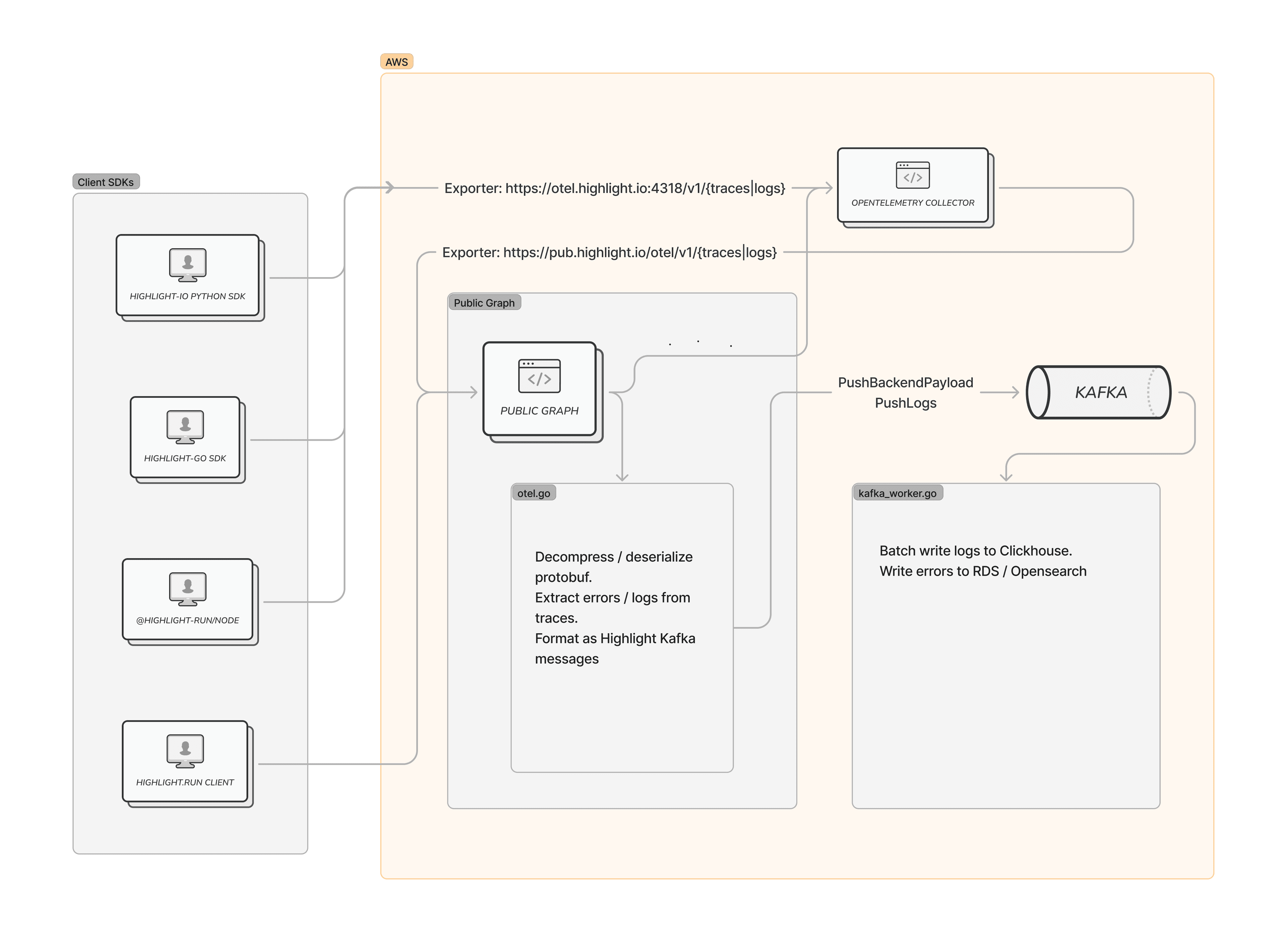

OpenTelemetry Diagram
